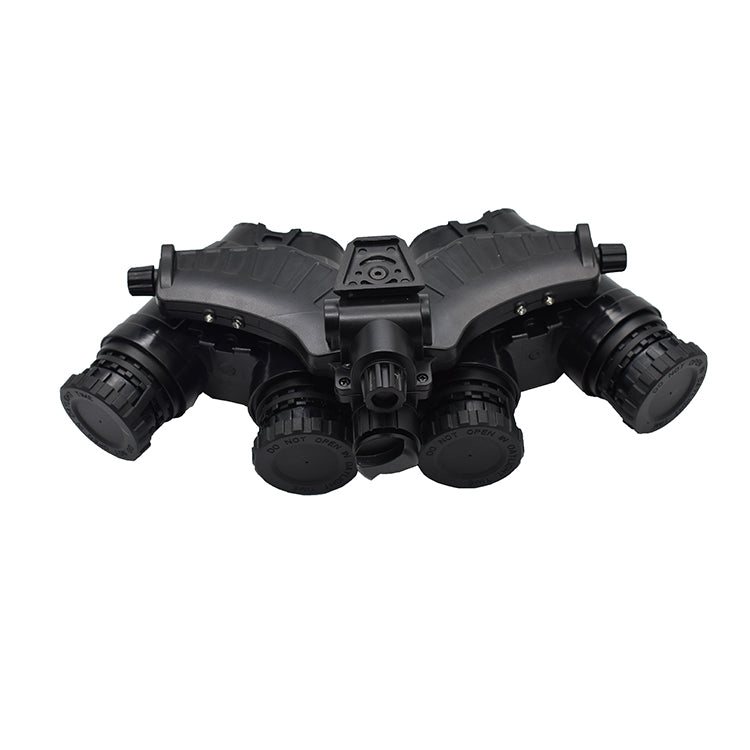

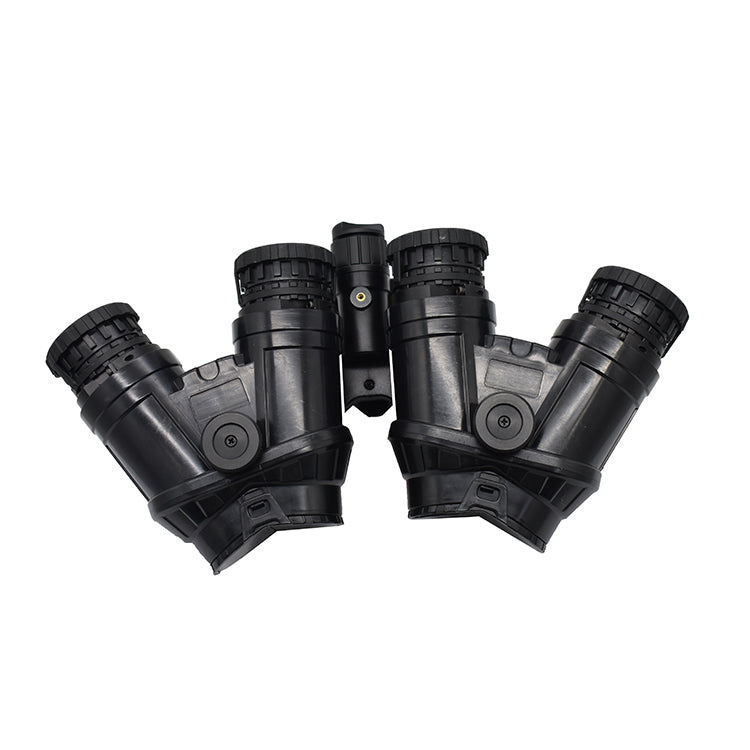

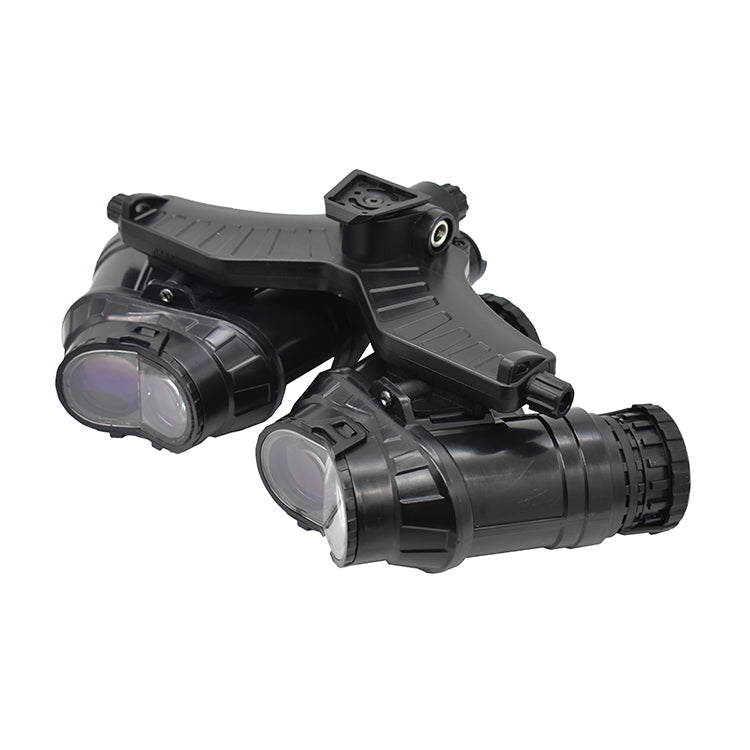

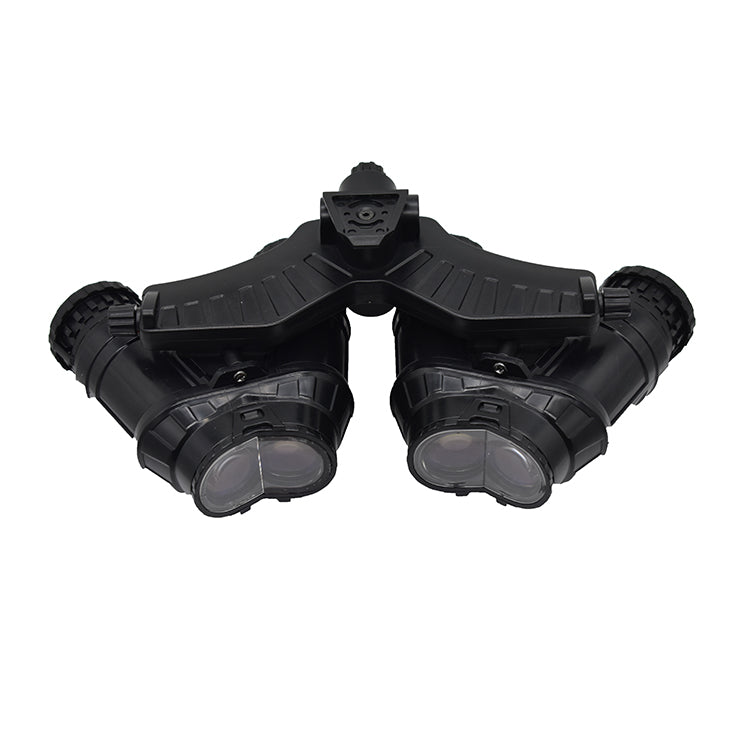

GPNVG 18 NIGHT VISION 4 eyed GPNVG FOV 120° MODEL: LDNV014 BODY COLOR: Black or customized SERVICE: OEM and ODM CUSTOMIZE: LOGO and PACKING BOX WARRANTY: 1 YEAR FEATURES 1. FOV 120 degree 2. Diopter adjusting wheel 3. Battery packs and wire included 4. Build in IR flashlight 5. Low battery indicator 6. IR light ON/OFF indicator 7. Housing offered With the new technology, Lindu Optics developed a new Ground Panoramic Night Vision Goggles which called LDNV014N GPNVG, The purpose of the GPNVG is to provide the operator more information under goggles, allowing him to more quickly move through the OODA Loop (Observe, Orient, Decide, Act). The most striking feature of the GPNVG is the presence of four separate image intensifier tubes with four separate objective lenses arrayed in a panoramic orientation. The center two lenses point forward like traditional dual-tube goggles, giving the operator more depth perception, while two more tubes point slightly outward from the center to increase peripheral view. The two tubes on the right and the two on the left are spliced at the eyepieces. The operator sees the two center tubes somewhat overlapping the two outer tubes to produce an unprecedented 120° FOV. well the original gpnvg18 only 97°. The two right and two left tubes are housed in merged assemblies and are hung from a bridge, giving operators interpupillary adjustment options. They can also be easily removed and operated as independent handheld viewers. The IPD of the two system can be adjusted on the helmet mount.
please be aware, at current the lead time for tubes on these items are towards the end of the year with current order status, due to on going world events.
